| Custom Fans / Blowers |
GP offers a quiet and compact air moving solution with EC and brushless DC technology. including EC/DC centrifugal fans, centrifugal blowers,gas blowers, inline fans and axial Cooling fans,etc. these fans can save 30-80% energy than traditional AC Fans.With 100% speed controllable by 0-10V/PWM signal and meets CE, CCC, UL, RoSH, ErP2015.they covers almost every conceivable application area, such as Telecommunication(FCU and Heat exchanger), cleaning room,Building ventilation system, HVAC, Railway technology, Purification business,etc.
|
|
 |
|

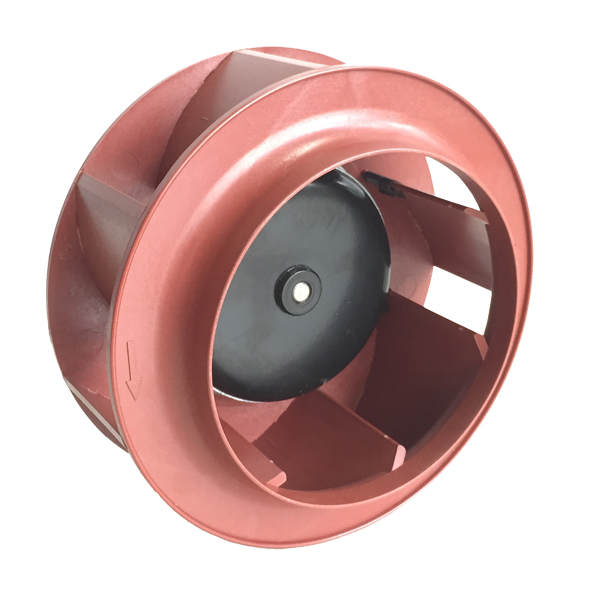

Centrifugal Fans |
| Using Green EC technology. available with forward or backward curved blades. It can save 30-40% of energy than traditional AC Centrifugal Fans.GP EC Fans offer easy, quiet, efficient speed control by 0-10VDC or PWM signal output) and operate over a wider range of DC input from 24V to 72V or AC input from 115V to 380v 50/60Hz as standard, without affecting. This simple controllability and lower running cost makes EC technology very attractive for applications such as air conditioning condensing units, air handling units and other refrigeration applications. |
|
|
|
|
|
 |
|

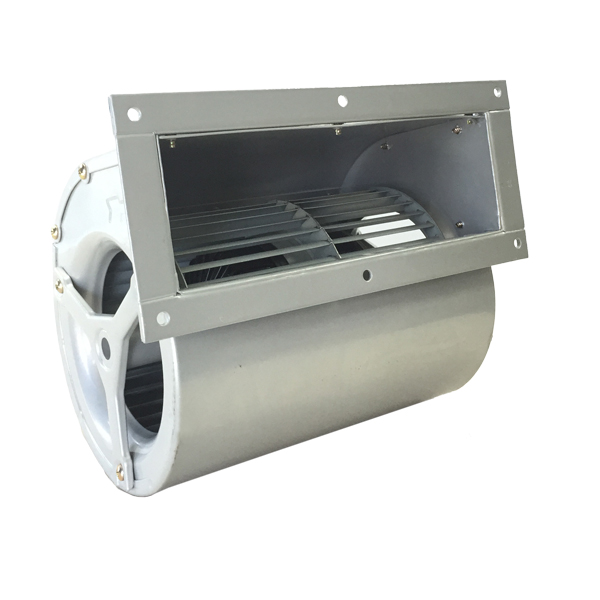

Centrifugal Blowers |
| Available in single inlet and dual inlet blower. Offer easy, quiet, efficient speed control by 0-10VDC or PWM and operate over a wider range of DC voltage from 12V to 48V or AC voltage from 115V to 380v 50/60Hz as standard, without affecting. The Centrifugal Blowers with state-of-the-art EC technology cover almost every conceivable application area, including compact air handling units, air curtains for doors and gates, fan coils, air heaters for factory buildings or as a cooling fan for forced cooling of power converters, generators or telecommunications systems. |
|
|
|
|
|
 |
|

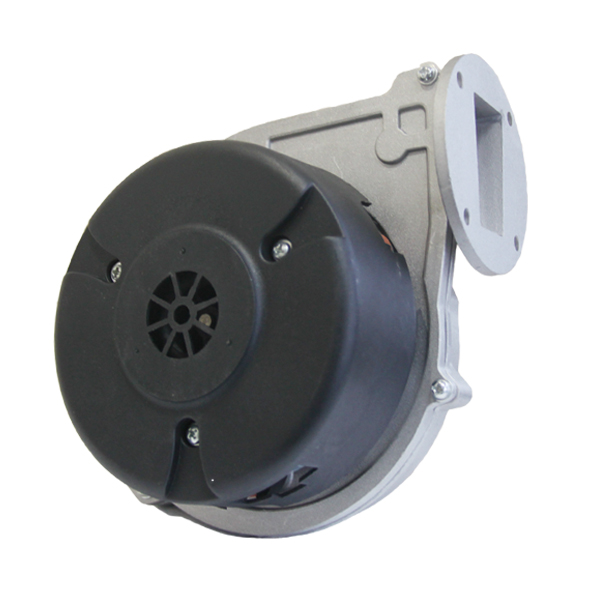

Gas Blowers |
| Available in 24V&48V DC input or 115V&230V 50/60Hz, It is a reduction of approx. 20 percent compared to the AC gas blowers, without a reduction in performance. The product features a proven premix ready construction and EC motor technology that can be speed controlled with a low voltage to offer turn down ratios approaching 10:1. EC Gas Blower for gas-condensing heating with steep pressure/air flow characteristics and high maximum pressure. |
|
|
|
|
|
 |
|
Hot Air Circulation Blowers |
| Both standard models and customize solutions are available.
GP has been devoted on heating engineering for decades. Our hot air circulation fans with high performance for applications of wood pellet stoves, heaters and ovens. The fans are well received for its long service life, noise and economy. Also the fan''s external rotor construction ensures outstanding cooling performance, which is further improved by aerodynamically optimised cooling vanes that cool the motor. |
|
|
|
|
|
 |
|

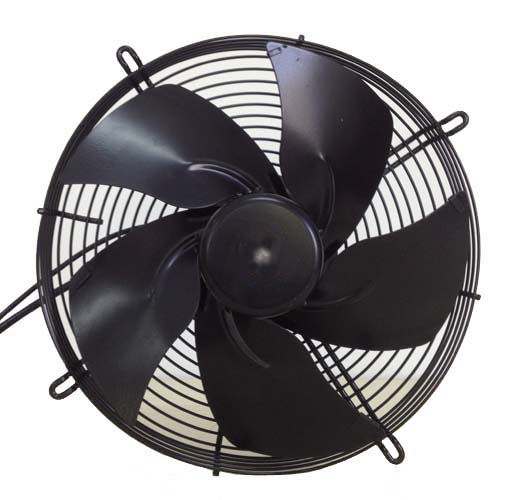

Axial Fans |
| High Efficiency EC/DC Axial Fans with simple control, High-efficiency, low noise, explosion-proof, energy saving designs in EC technology with standardized integration of control functions and sensor signals (tacho output, 0-10V or PWM input) and many other features. Operate over a wider range of DC voltage 24V, 48V or AC voltage from 115V to 380v 50/60Hz as standard, without affecting. Wide range of accessories, including guard grilles, guard grilles and wall rings. Furthermore, in EC design, they become intelligent "energy-saving wonders" for an extremely wide range of applications, such as Air heaters, Heat pumps, Condensers, Cooling units, Evaporators and Chillers,data centers cooling, etc. |
|
|
|
|
|
 |
|

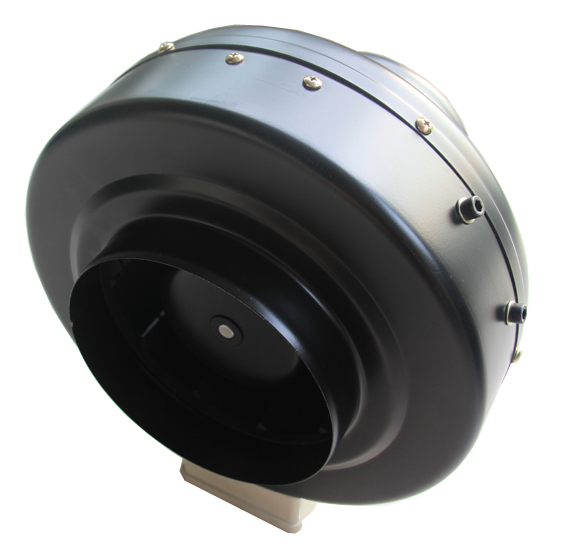

Inline Duct Fans |
| Using EC technology. available in 100(4"), 125(5"), 150(6"), 200(8"), 250(10") and 315(12"). It can save 30-40% of energy by 0-10V/PWM speed control. A high quality external rotor motor with backward curved and forward curved impeller guarantees energy saving and trouble-free operation. our EC inlne fans are easy to connect and their ball bearing motor is very easy to speed control. Operate over a wider range of DC voltage 24V, 48V or AC voltage from 115V to 380v 50/60Hz as standard, without affecting. |
|
|
|
|
|
|
|
